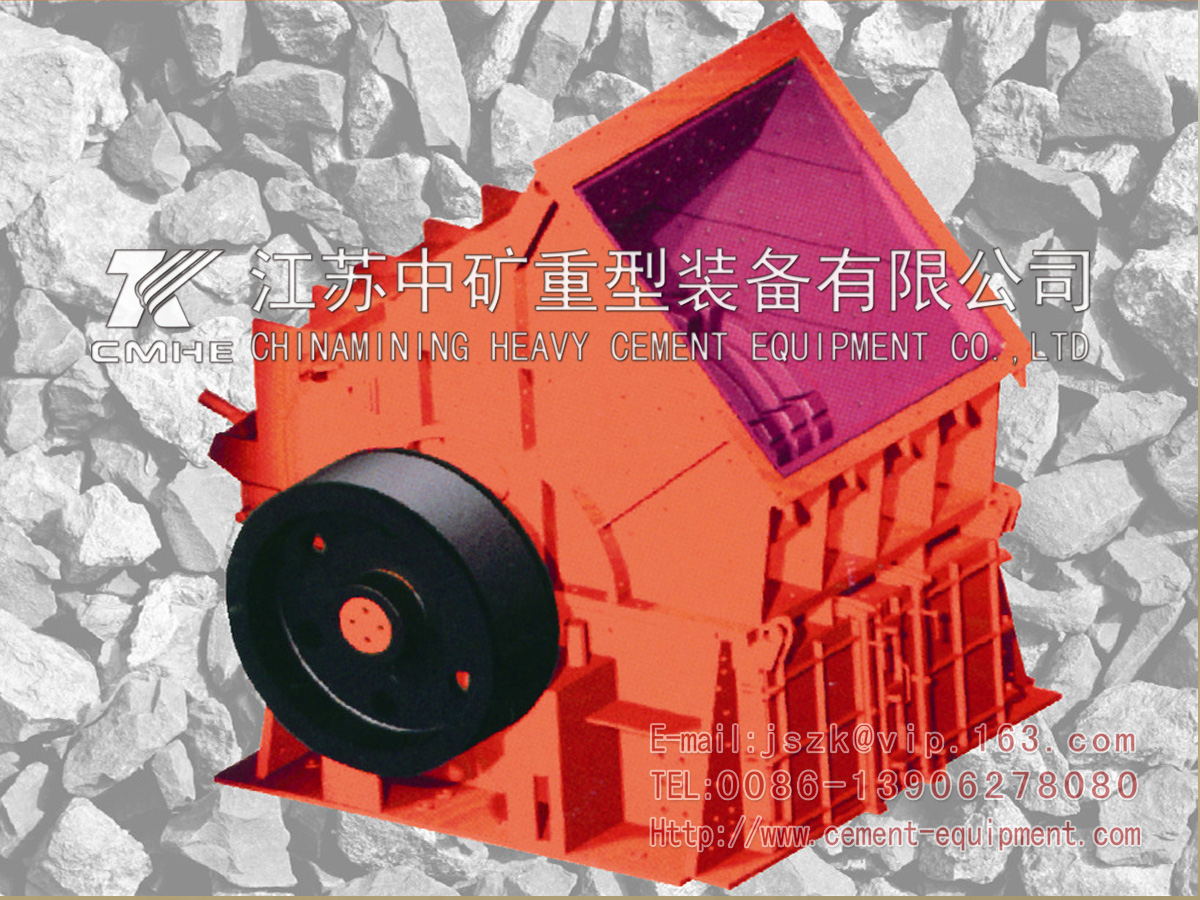

PCF单段锤式破碎机
丁宝勤 13906276368(技术)
电话：0513-88400999 传真：0513-88400998 邮箱：jszk@vip.163.com
单段锤式破碎机为重锤式破碎机，主要用于石灰石的破碎作业，大型单段锤式破碎机可以将1000mm直径的石灰岩直接破碎到20mm左右，具有强大的破碎能力。适用于破碎抗压强度不大于200MPa的石灰石、石膏、煤、石灰岩、砂页岩等。用于选矿、建材、水利、化学工业等领域的破碎筛分联合设备中。
Single-stage hammer crusher is a hammer crusher. It is mainly used in the crushing operations of limestone. The large single-stage hammer crusher can directly crush limestone 1000mm in diameter into about 20mm.lt has strong crushing capacity.lt is suitable for crushing limestone.gypsum,coal, limestone with a compressive strength not more than 200Mpa. It is used in crushing and screening equipment in the fields of mineral processing, building materials,water conservancy.chemical industry.etc.
产品特点 Product features
■破碎比大
■产品粒度均匀
■过粉碎现象少
■锤头性能高
■进料尺寸大
■结构简单，工作可靠
■结构紧凑、维修方便
■能耗低、运营费用经济
Large crushing ratio
Uniform particle size
Few over crushing phenomena
hammerhead has a high wear resistance
large feeding size
simple structure,reliable working
compact structure,easy maintenance
low energy consumption.operating costs
技术参数表I Technical Date
型号 | 转子尺寸(mm) | 进料粒度(mm) | 出料粒度(mm) | 生产能力(t/h) | 功率(kw) | 重量 （t） |
PCF1412 | 1420×1194 | 600×600×600 | 25-75 | 80-120 | 132-220 | 27000 |
PCF1616 | 1650×1600 | 600×600×900 | 25-75 | 180-240 | 315-355 | 43300 |
PCF1616J | 1650×1740 | 800×800×1000 | 25-75 | 150-240 | 250-355 | 42000 |
PCF1818 | 1900×1750 | 900×900×1000 | 25-75 | 300-350 | 560 | 69550 |
PCF2018 | 2020×1802 | 1000×1000×1000 | 25-75 | 350-500 | 710 | 88710 |
PCF2022 (不带） | 2018×2227 | 1000×1000×1000 | 25-75 | 500-600 | 800 | 111000 |
PCF2022 (单辊） | 2018×2227 | 1000×1000×1500 | 25-75 | 600-700 | 900 | 120000 |
PCF2022 (双辊） | 2018×2227 | 1000×1000×1500 | 25-75 | 700-800 | 900 | 130000 |
2PCF1818 | 1800×1800 | 1000×1000×1500 | 25-75 | 700-900 | 710×2 | 119025 |
2PCF1820 | 1800×2000 | 1250×1000×1000 | 25-75 | 900-1000 | 710×2 | 122665 |
2PCF2022 | 2018×2227 | 1000×1000×1500 | 25-75 | 900-1200 | 800×2 | 142500 |
2PCF2025 | 2018×2457 | 1000×1000×1500 | 25-75 | 1000-1300 | 900×2 | 148000 |
