空气输送斜槽
丁宝勤 13906276368(技术)
电话：0513-88400999 传真：0513-88400998 邮箱：jszk@vip.163.com

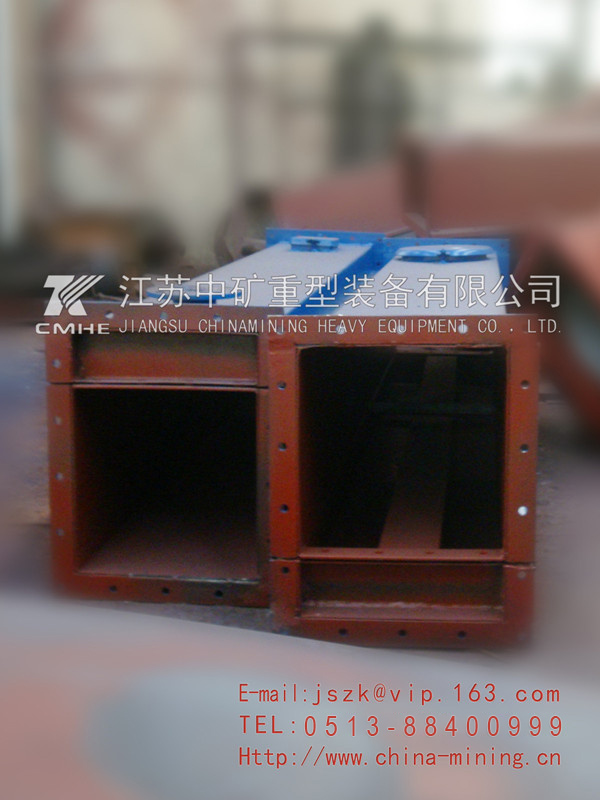

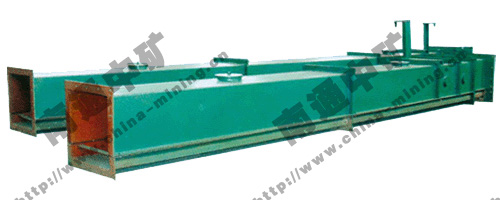

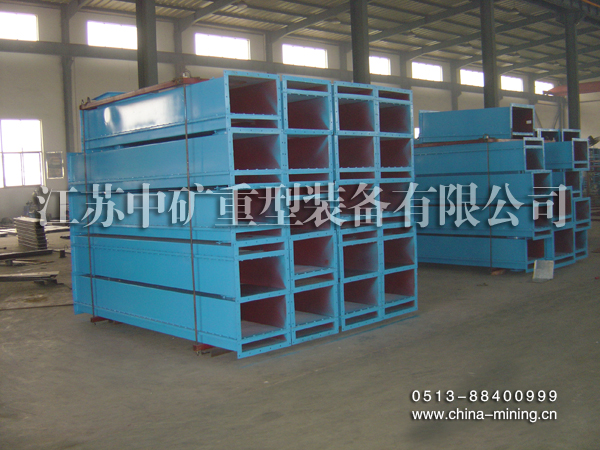

一、概述
空气输送斜槽是一种广泛地应用于输送干燥粉状物料的气力输送设备。在水泥工业中常用输送水泥和生料粉。斜槽在输送物料中因没有转动部件，易于维护，密封性好，无噪音，操作安全可靠。耗电少，改变输送方向方便，并能多点喂料和多点卸料而得到广泛的应用。斜槽的主要构件是槽体和透气层，本系列产品采用PET5—6 (涤纶)型合成纤维织物作为透气层，这是一种新型透气材料。它具有耐高温(可达15CTC)、 耐腐蚀、耐磨损、吸湿性低、重量轻、表面平整、使用寿命长等优点。
I .Brief introduction
Air slide is a pneumatic conveying equipment to convey dry and powder material widely. Usually, it is used to convey cement and raw material powder. It is characterized by easy maintenance, good sealing, no noise, safe and dependable operation because of no driving part. It can feed at many points and discharge in many points. Main part of air slide is ventilated layer. This product is used PET-6(Terylene) synthetic fibre which is a new ventilated type. It can resistant high temperature(up to 150*C),abrasion resistance, low moisture, light weight, plain surface and long life etc.
二、技术性能：
1、输送物料：含水量≤1%，温度150℃的干燥的粉状物料
2、输送能力：输送水泥及生料成品时的输送能力如下表所列
II. Technical capacity
1.Conveying material: moisture:彡 1%，Temperature^ 150°C dry and powder material.
2.Conveying capacity: Conveying cement and raw material finished product as follows.
三、技术参数表
规格（Spec.) | XZ200 | XZ250 | XZ3 1 5 | XZ400 | XZ500 | XZ630 | XZ800 | ||||
输 送 能 力 | 槽体宽度(WIDTH) | mm | 200 | 2 5 0 | 3 1 5 | 400 | 5 0 0 | 6 3 0 | 800 | ||
a=4° | 水泥(Cement) | t/h | 2 2 | 40 | 7 0 | 1 3 0 | 2 2 0 | 3 2 0 | 400 | ||
生料(Raw material) | 1 6 | 3 0 | 5 5 | 1 00 | 1 6 5 | 245 | 3 1 0 | ||||
a =6° | 水泥(Cement) | 4 0 | 6 5 | 1 2 0 | 2 5 0 | 4 0 0 | 6 1 0 | 7 6 5 | |||
生料(Raw material) | 3 0 | 5 5 | 9 0 | 1 8 5 | 300 | 4 5 5 | 5 6 5 | ||||
a=8° | 水泥(Cement) | 5 0 | 8 0 | 1 4 0 | 300 | 4 7 0 | 7 2 0 | 9 0 0 | |||
生料(Raw material) | 3 5 | 6 5 | 1 1 0 | 2 2 5 | 3 5 5 | 540 | 6 7 0 | ||||
a=10° | 水泥(Cement) | 6 0 | 1 00 | 1 7 0 | 3 8 0 | 5 7 0 | 900 | 10 8 0 | |||
生料(Raw material) | 45 | 80 | 1 40 | 285 | 425 | 670 | 800 | ||||
a=12° | 水泥(Cement) | 70 | 1 20 | 205 | 455 | 685 | 1 080 | 1295 | |||
生料(Raw material) | 50 | 95 | 1 65 | 340 | 510 | 805 | 960 | ||||
槽体节长Length of groove body | 标准节(Standard part) | mm | 2 0 0 0 | ||||||||
非标准节(Nocvstandard part) | mm | nX250 | |||||||||
需要风压(Needed wind pressure) | KPa | 4—5.5 | |||||||||
透 层 | 需要风量(Needed air volume) | mVfn* ? min | 1.5-2 | ||||||||
材质(Material) |

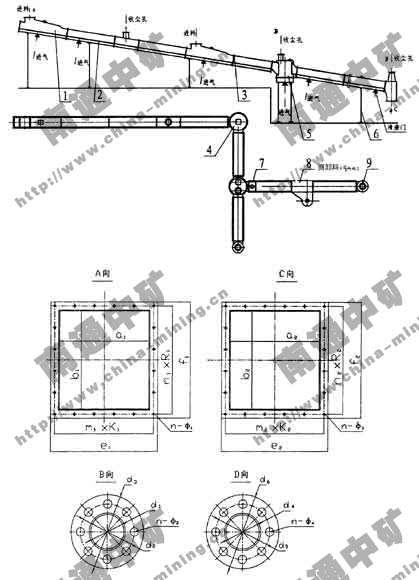

| 合成纤维(synthetic fibre) | |||||||||
厚度(Thickness) | mm | 4—6 | |||||||||
耐温(Temperature resistance； | V | 1 5 0 | |||||||||
(RlffilSgth, | N /cm宽(width) | 4 7 0 0 | |||||||||
阻力(Resistance) | P a | 800-1200(在SmVm2 ? min条件下）（on the condition of 2m3/m2 ? min) | |||||||||
| ai | bi | ei | fl | mi x R-f | n<| x Rf | nx中1 | |||||||
I型 | II型 | I型 | II型 | I型 | II型 | I型 | II型 | I型 | II型 | I型 | II型 | I型 | II型 | |
XZ200 | 120 | 200 | 120 | 150 | 210 | 280 | 210 | 230 | 2X86 | 4X63 | 2X86 | 3X66 | 8-4> 14. 5 | 14- 4) 12 |
XZ250 | 150 | 250 | 150 | 200 | 240 | 330 | 240 | 280 | 3X70 | 4X70 | 3X70 | 3X83 | 12-4> 14. 5 | 14- 4> 12 |
XZ315 | 150 | 250 | 150 | 250 | 240 | 330 | 240 | 330 | 3X70 | 4X75 | 3X70 | 4X75 | 12-<b 14. 5 | 16-中12 |
XZ400 | 150 | 315 | 150 | 315 | 240 | 395 | 240 | 395 | 3x70 | 5X73 | 3X70 | 5X73 | 12-4> 14. 5 | 20-小12 |
XZ500 | 200 | 400 | 200 | 400 | 290 | 480 | 290 | 480 | 3X88 | 6X75 | 3X88 | 6X75 | 12-4) 14. 5 | 24-小12 |
XZ630 | 200 | 500 | 200 | 500 | 290 | 580 | 290 | 580 | 3X88 | 7X79 | 3X88 | 7X79 | 12-4> 14. 5 | 28-4) 12 |
| a2 | b2 | e2 | h | m2xR2 | N2xR2 | nxΦ3 | di | d2 | d3 | nxΦ2 | d4 | d5 | d6 | nxΦ4 |
XZ200 | 206 | 206 | 286 | 286 | 3X82 | 3X82 | 14-4> 12 | 108 | 152 | 188 | 4-4> 12 | 4> 130 | (|> 160 | 4> 190 | 6-4> 12 |
XZ250 | 256 | 256 | 336 | 336 | 4X 75 | 4X 75 | 16-<1) 12 | 108 | 152 | 188 | 4-d> 12 | 135 | <J> 170 | <t> 205 | 6-<i> 12 |
XZ315 | 321 | 321 | 401 | 401 | 5X 73 | 5X 73 | 20-4> 12 | 200 | 225 | 260 | 6-4> 12 | 4> 190 | 4> 225 | 4> 260 | 8-4> 12 |
XZ400 | 406 | 406 | 486 | 486 | 6x75 | 6X75 | 24-4) 12 | 219 | 280 | 315 | 8-4> 12 | 巾245 | 小280 | 中315 | 8-中12 |
XZ500 | 506 | 506 | 586 | 586 | 7X79 | 7x79 | 28- 4> 12 | 260 | 305 | 340 | 8-4> 12 | 270 | <b 305 | 340 | B-4> 12 |
XZ630 | 638 | 638 | 738 | 738 | 8X86 | 8X86 | 32-4> 14. 5 | 325 | 370 | 405 | 12-4> 12 | * 355 | 4> 395 | 小435 | 12-4> 12 |
